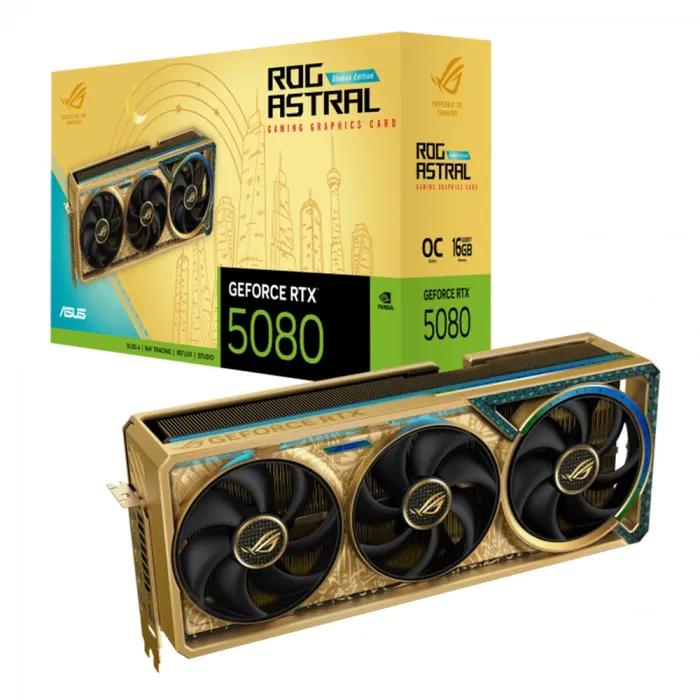

ASUS ROG NVIDIA GeForce RTX 5080 16GB GDDR7 Graphics Card

Next-Gen Power for Ultimate Gaming and AI Workloads

Category	Specification
Graphics Engine	NVIDIA® GeForce RTX™ 5080
AI Performance	1899 TOPs
Bus Standard	PCI Express 5.0
OpenGL	OpenGL® 4.6
Video Memory	16GB GDDR7
Engine Clock	OC Mode: 2790 MHz Default Mode: 2760 MHz (Boost Clock)
CUDA Cores	10,752
Memory Speed	30 Gbps
Memory Interface	256-bit
Max Digital Resolution	7680 × 4320 (8K UHD)
Display Outputs	2 × HDMI 2.1b (Native) 3 × DisplayPort 2.1b (Native)
HDCP Support	Yes (2.3)
Max Display Support	4 Displays (simultaneous)
NVLink / Crossfire	Not Supported
Power Connectors	1 × 16-pin
Recommended PSU	850W (based on overclocked CPU + GPU setup)
Slot Size	3.8-slot
ARGB Lighting	AURA SYNC Compatible

Included Accessories:

ROG Graphics Card Holder
SpeedSetup Manual
ROG Velcro Hook & Loop
ROG Magnet
ROG Graphics Card Keycap
ROG PCB Ruler
Thank You Card
1-to-3 Adapter Cable

Dimensions:

Metric	Imperial
357.6 × 149.3 × 76 mm	14.1 × 5.9 × 3 in

Software Support:

ASUS GPU Tweak III
MuseTree
GeForce Game Ready Driver
NVIDIA Studio Driver

(All software available for download from ASUS support site)

⚠ Note: Specifications may change without notice. Always confirm product details with the supplier before purchase. For tailored PSU recommendations, use the ASUS PSU Wattage Calculator.
