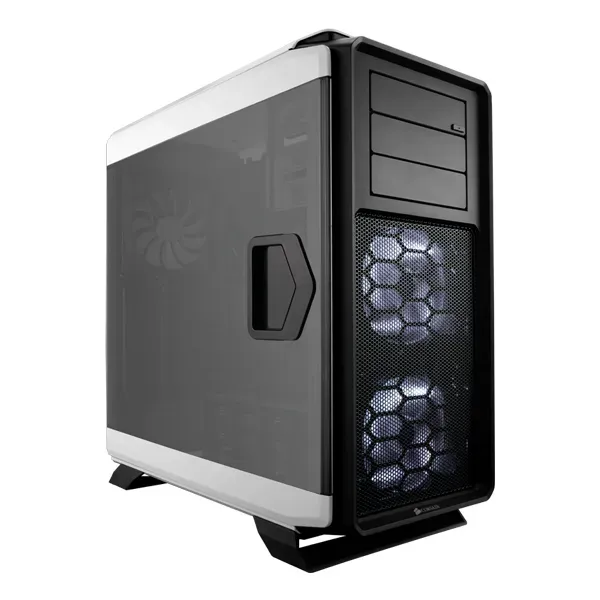

Graphite Series 760T Arctic White
Full-Tower Windowed Case
Industry-leading design and a fully windowed door.
The Graphite Series 760T full-tower PC case starts with a visually stunning design that’s a match for its stunning performance potential.

The beauty begins on the outside with its sculpted shapes and ingenious, full windowed hinged side panel with flush-mount latches. The front panel has two massive 140mm intake fans bathed in soft LED light, and there’s a dual-speed fan selector for performance or silence. Inside, there’s ample cooling potential, with eight fan mounting locations and room for multiple radiators for self-contained liquid CPU coolers, or even custom liquid cooling. And, clever touches like modular drive cages and laterally mounted SSD bays maximize interior volume to help your high-performance dreams come true.
Swing-out side panels
The side panels are hinged, so opening your 760T is as simple as pulling the flush-mounted latch. They can also be removed entirely by simply lifting them off of the hinges.
Ample cooling potential
Like all Corsair cases, the 760T is designed for high-performance system builds, and high-performance systems require sophisticated cooling. There are eight total fan mounts, with room for top, front, bottom and rear-mounted radiators.
A clever drive bay design that maximizes interior volume
The four SSD bays are mounted laterally to make the most efficient use of the interior space. The combo 3.5” / 2.5” drive bays employ a modular bay system, so you can remove the bays you don’t need. The end result is an open interior optimized for extra-long GPUs and free airflow.
Front I/O panel with USB 3.0 and USB 2.0 connectors
You can never have too many devices. The 760T front panel has two high-speed USB 3.0 connectors and two USB 2.0 connectors, plus headphone and microphone connectors for your headset.
Dual AF140L 140mm LED front intake fans with dual-speed control
The AF140L fans are custom-engineered by Corsair to deliver high-volume airflow with less noise and turbulence. The extra-large diameter allows them to run at a lower RPM, and they’re positioned to deliver cool air directly to your GPUs. A front panel switch allows you to toggle between silent and performance modes.
Contents and Specifications
Package contents

Graphite Series 760T Full Tower Case
Quick Start Guide
Compatibility

Mini ITX, Micro ATX, ATX, Extended ATX, XL-ATX motherboards
Technical specifications

Gorgeous full panel window for maximum visibility of your internal components
Hinged side panels with quick release latches for easy access
Generous expansion room for building high-performance systems
Tool-free SSD, Hard Drive, and Optical Drive installation
Includes three AF140L fans, (front fans with white LEDs) with room for up to eight fans
Modular drive cage system for highly customizable layoutsTwo modular drive cages house three 3.5” or 2.5” drives each
Four tool-free dedicated SSD cages, sideways mounted
Designed for fast and straightforward builds
Two USB 3.0 and two USB 2.0 front panel connectors, plus headphone and microphone

Easily accessed dust filters
Excellent cable routing with rubber grommets for clean builds
Nine expansion slots for multiple PCI-E devices or large motherboards

Weight - 11.2kg

Color - Arctic White

Case Form Factor - Full-Tower

Dimensions - 564mm x 246mm x 568mm

Case Motherboard Support - Mini-ITX, MicroATX, ATX, E-ATX, XL-ATX

Maximum GPU Length - 450mm

Maximum CPU Cooler Height - 170mm

Maximum PSU Length - 240mm

Case Expansion Slots - 9

Case Drive Bays
(x3) 5.25in
(x4) 2.5in
(x6) Combo 3.5in/2.5in

Case Material - Steel
Case Power Supply - ATX (not included)

External Connections
(x2) USB 2.0
(x2) USB 3.0
(x1) Fan Controller
(x1) Headphone Port
(x1) Microphone Port

Fan Mount Locations
Front: (x2) 120/140mm
Top: (x3) 120mm or (x2) 140mm
Rear: (x1) 120/140mm
Bottom: (x1) 120mm

Fans Included
Front: (x2) 140mm
Rear: (x1) 140mm
Radiator Mount Locations
Front: 240/280mm
Top: 240/280/360mm
Rear: 120/140mm
Bottom: 120mm

Compatible Corsair Liquid Coolers
H55, H60, H75, H80i, H90, H100i, H105, H110
